使用外部工具

You can use external tools directly from Qt Creator. Qt Linguist, QML preview tools, and the default text editor for your system are preconfigured for use. You can change their default configurations and configure new tools.

To run the tools, select 工具 > External , or use the x filter in the locator.

Using Qt Linguist

You can use the Qt Linguist release manager tools, lupdate and lrelease, directly from Qt Creator. The lupdate tool is used to synchronize source code and translations. The lrelease tool is used to create run-time translation files for use by the released application.

When you create a new project , you can automatically generate a translation source file (TS) for one language. You can add other languages later by editing the project file.

To synchronize TS files from a translator with the application code, select 工具 > External > Linguist > Update Translations (lupdate) .

To generate from the TS files Qt message (QM) files that can be used by an application, select 工具 > External > Linguist > Release Translations (lrelease) .

By default, the project .pro file is passed to the tools as an argument. To specify other command line arguments for the tools, select 工具 > External > 配置 .

To open TS files in Qt Linguist, right-click a TS file in the Projects or File System view and select Open With > Qt Linguist in the context menu. For more information about Qt Linguist, see Qt Linguist 手册 .

Previewing QML Files

You can preview the current QML document in the QML Viewer (Qt Quick 1) or QML Scene (Qt Quick 2). The preview tools enable you to load QML documents for viewing and testing while you are developing an application.

To preview the currently active QML file, select 工具 > External > Qt Quick > Qt Quick 1 Preview (qmlviewer) or Qt Quick 2 Preview (qmlscene) .

Using External Text Editors

You can open files for editing in the default text editor for your system: Notepad on Windows and vi on Linux and macOS. To open the file you are currently viewing in an external editor, select 工具 > External > Text > Edit with Notepad or Edit with vi , depending on your system.

Qt Creator looks for the editor path in the PATH environment variable of your operating system.

Configuring External Tools

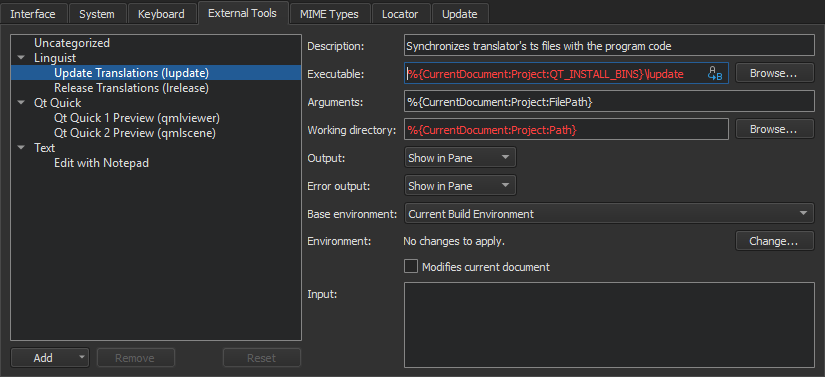

You can change the configuration of preconfigured tools and configure additional tools in Qt Creator Options .

Select the ( 变量 ) button in a field to select from a list of variables that are available in a particular context.

To configure external tools:

  1. 选择 工具 > External > 配置 .
  2. 选择 Add > Add Tool to add a new tool. You can also select Add Category to add a new category.
  3. Executable field, specify the executable to run. If the executable is found in your system PATH variable, do not specify the path to it.
  4. 自变量 field, specify optional arguments for running the executable.
  5. Working directory field, specify the path to the working directory.
  6. Output field, select how to handle output from the tool. You can ignore the output, view it in the General Messages output pane, or replace the selected text with the output in the code editor.
  7. Error output field, select how to handle error messages from the tool.
  8. Base environment field, select whether to run the tool in the system environment or the build environment or run environment of the active project. Select the build or run environment if the system environment does not contain the necessary PATH settings to find the tool chain, for example.
  9. Environment field, select Change to modify environment variable values for build and run environments in the Edit Environment Changes dialog. For more information about how to add and remove variable values, see Batch Editing .
  10. Select the Modifies current document check box to make sure that if the current document is modified by the tool, it is saved before the tool is run and reloaded after the tool finishes.
  11. Input field, specify text that is passed as standard input to the tool.

The category and tool are added to the 工具 > External 菜单。

If you change the configuration of preconfigured tools, you can later revert the changes by selecting the Reset button.

The tool configurations that you add and modify are stored in XML format in the user configuration folder. For example, ~/config/QtProject/qtcreator/externaltools on Linux and macOS and C:\Users\username\AppData\Roaming\QtProject\qtcreator\externaltools in Windows. To share a configuration with other users, copy an XML configuration file to the folder.
